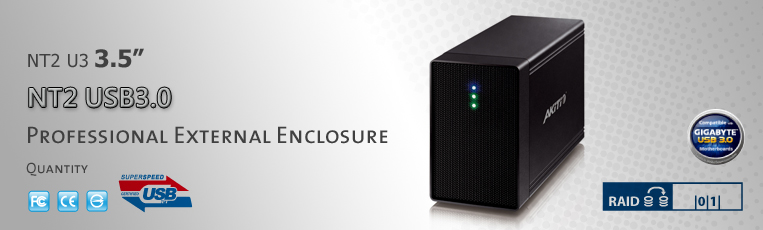

The ultra compact design of the NT2 makes this dual-bay RAID storage enclosure one of the smallest in the market, yet it still packs a punch when it comes to flexibility and performance. Installing the 3.5" hard drives is quick and easy, thanks to the screwless design. By incorporating USB 3.0 SuperSpeed technology, Akitio's NT2 U3 is able to break the USB 2.0 barrier, delivering up to 10 times the speed of the older USB connection. At the same time, it is still backwards compatible with the widely used USB 2.0 technology. |
Features |
- Configurable RAID function (Non-RAID, RAID 0, RAID 1)
- Supports large volumes in excess of 2TB
- USB 3.0 SuperSpeed connection
- Backwards compatible with USB 2.0 High Speed
- Compact and screwless design for easy HDD installation
- Built-in fan (4000RPM) for extra cooling
- Security lock slot
|

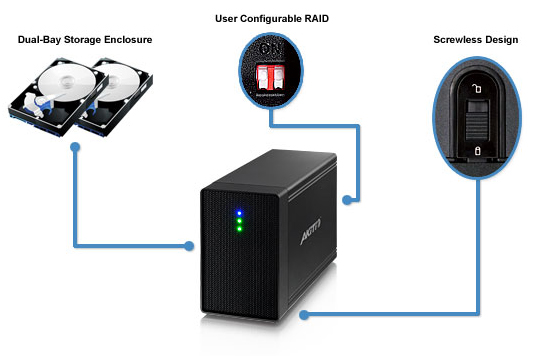

Compact & Screwless Design |
The small footprint and screwless design makes this the ideal storage expansion for your crowded desktop. In a matter of seconds, hard drives can be installed or replaced without any extra tools. |
Dual-Bay RAID Storage Enclosure |
The NT2 is designed to house up to two 3.5" SATA hard drives with the option to setup your drives according to your own preferences. For data security select RAID 1 (mirror copy), for performance select RAID 0 and to create two independent volumes, select Non-RAID. |
Specifications |
| Part No. |
NT2-U3ASA1-AKT |
| Case material |
High quality aluminum housing |
| Application |
‧Up to two 3.5" SATA-I, SATA-II or SATA-III hard drives
‧Capacity 80GB - 4TB per HDD
‧For RAID 0 & 1, two hard drives of identical capacity are recommended
‧Supports large volumes in excess of 2TB |
| RAID mode |
‧Non-RAID / ‧RAID 0 striping
‧RAID 1 mirroring
|
| Interface/Ports |
‧1x USB 3.0 SuperSpeed port (backwards compatible with USB 2.0)
|
| Data transfer |
‧USB 3.0 up to 5Gbps (625MB/s)
‧USB 2.0 up to 480Mbps (60MB/s)
|
System requirements
(PC) |
‧USB 3.0: Windows XP/Vista/7
‧USB 2.0: Windows XP/Vista/7
‧Your hardware device must have the correct corresponding port (e.g. USB 3.0, USB 2.0 or PCI card)
|
| System requirements (Mac) |
‧USB 2.0: Mac OS 10.2 or above
‧Your hardware device must have the correct corresponding port (e.g. USB 2.0 or PCI card)
|
| System environment |
‧Operating Temperature: 5°C ~ 40°C
‧Operating Humidity: 20%RH ~ 80%RH
‧Storage Temperature: -20°C ~ 70°C
‧Storage Humidity: 10%RH ~ 90%RH
|
| Power supply |
‧External power supply (UL, cUL, CE, TUV approved)
‧Input: AC 100-240V, 50-60Hz
‧Output: DC +12V/3A
|
| Dimensions |
|
| High
(mm) |
81 |
| Long (mm) |
177 |
| Wide (mm) |
123 |
|
|
